The Role of Bena Optics' Focusing Lenses in Advanced Laser Systems

Table of Content [Hide]

    In the dynamic field of laser technology, focusing lenses are indispensable components that significantly enhance the precision and efficiency of laser systems. Bena Optics specializes in crafting high-quality focusing lenses tailored for various laser applications, ensuring optimal performance and reliability.

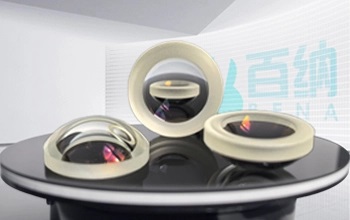

    Understanding Focusing Lenses: The Basics

    Fundamental Principles

    Focusing lenses, typically made of optical components like spherical or aspherical lenses, play a crucial role in directing laser beams to a specific focal point. When a laser beam passes through a focusing lens, it refracts through the lens's curved surface, converging at a focal point. This process concentrates the laser's energy, resulting in a higher power density essential for applications such as laser cutting, marking, and welding.

    Category

    Type/Material

    Key Features

    Application

    Lens Types

    Spherical Lenses

    Simple curvature design
    Reliable focusing performance

    General laser applications
    Basic optical systems

    Aspherical Lenses

    Complex surface geometry
    Minimized spherical aberration

    High-precision imaging
    Advanced optical systems

    Material Types

    Optical Glass

    High transparency (380-2500nm)
    Thermal resistance up to 300°C

    Standard optical instruments
    Visible light applications

    Quartz

    Ultra-low thermal expansion
    High laser damage threshold

    High-power laser systems
    UV & IR spectrum applications

    Key Parameters for Focusing Lenses

    Parameter

    Impact Characteristics

    Typical Values/Range

    Focal Length

    Shorter lengths produce smaller focal points and higher energy density

    1mm - 100mm

    Transmittance

    Higher values reduce energy loss and improve laser efficiency

    >98%@1064nm

    Thermal Resistance

    Effective heat dissipation prevents thermal deformation

    >500W/m·K (copper substrate)

    Applications of Focusing Lenses

    Bena Optics' focusing lenses are integral to numerous laser applications:

    Laser Cutting: By focusing the laser beam onto material surfaces, these lenses enable precise and efficient cutting.

    Laser Marking: Accurate control of laser reaction times and energy ensures high-quality and durable markings.

    Laser Welding: Focusing the laser onto the welding area guarantees strong and reliable welds.

    Best Practices for Using Focusing Lenses

    To maximize the performance and longevity of focusing lenses, consider the following best practices:

    Cleaning: Maintain lens cleanliness to prevent dust or contaminants from affecting laser transmittance and focusing efficiency.

    Suitability: Choose lenses based on the specific laser type and application requirements to achieve optimal performance.

    Alignment: Ensure precise alignment of the laser beam with the lens's optical axis for the best focusing results.

    Focusing lenses are pivotal in enhancing the performance of laser systems, offering higher energy densities and improved processing efficiency. Bena Optics' premium focusing lenses are designed to meet the stringent demands of cutting, marking, welding, and other laser applications, ensuring precision and reliability.
