Revolutionizing Laser Collimation: The Role of Aspheric Lenses in Optical Systems

Table of Content [Hide]

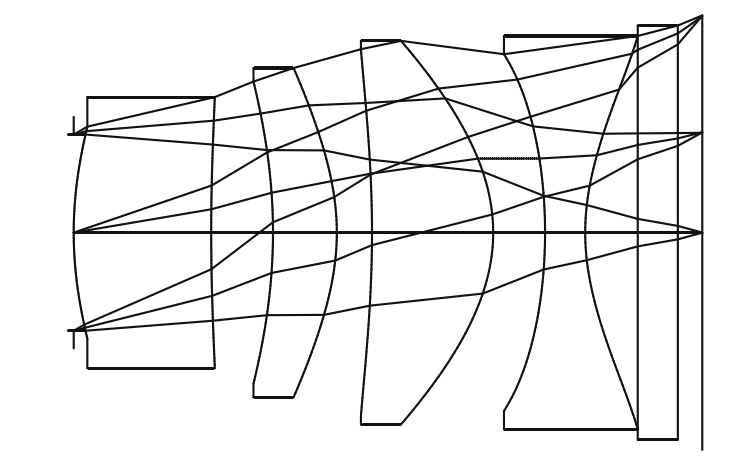

    The most commonly used spherical lenses in optical systems refer to lenses with rotationally symmetric spherical surfaces, meaning they maintain a constant curvature from the center to the edge. In contrast, aspheric lenses have rotationally symmetric surfaces that are not spherical, conforming to specific mathematical expressions while remaining smooth and continuous. Aspheric surfaces used in optical systems can be categorized into three major types: the first is axisymmetric aspheric surfaces, such as rotationally symmetric conic surfaces or higher-order surfaces; the second is aspheric surfaces with two planes of symmetry, like cylindrical or toroidal surfaces; and the third is freeform surfaces without any symmetry.lenses.png

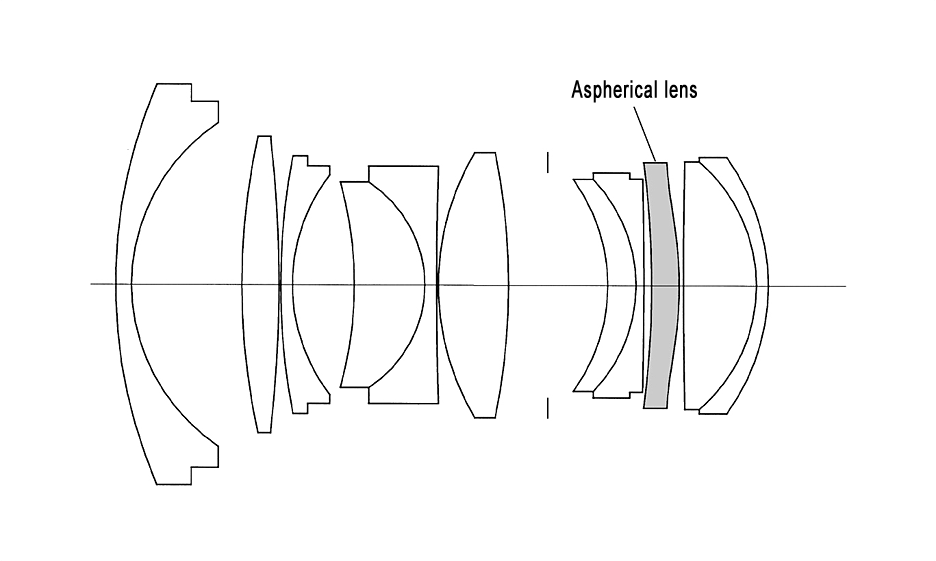

    Aspheric lenses play a crucial role in optical systems. For instance, in widely encountered applications such as smartphone lenses, camera lenses, and ultra-short-throw projectors, these complex systems often employ a combination of multiple aspheric and spherical lenses to optimize aberration correction, without forming standardized products.


    Another significant application of aspheric lenses lies in laser collimation, focusing, and laser-to-fiber coupling. The beam emitted directly from a laser is typically Gaussian, but practical applications—such as optical measurement, laser medicine, and laser processing—require laser beam shaping, including collimation, focusing, and homogenization. Conventional collimation methods using spherical lenses usually require at least two lenses.

    Since lasers are monochromatic light sources, spherical aberration often hinders the achievement of diffraction-limited performance when focusing or collimating light with a single spherical lens. A single aspheric lens, however, perfectly addresses this issue by optimizing spherical aberration, making it ideal for collimating the output light of optical fibers or laser diodes, as well as coupling lasers into fibers.

    Optical Components Specifications Comparison

    Type

    Design

    Key Features

    Applications

    Precision Polished Aspheric Lens

    ZnSe Aspheric Lens

    High transmittance in mid-IR spectrum (2.5-12μm); High refractive index (~2.4) enables shorter focal length and lower chromatic dispersion compared to other materials

    Mid-infrared optical systems

    Molded Aspheric Lens

    Glass Molded Aspheric Lens

    Broadband AR coating (Vis-NIR/UVA); Wide NA/focal length options; High consistency in mass production with cost efficiency

    High-volume optical devices

    Mounted Aspheric Lens

    Threaded Mount Design

    Integrated threaded housing for mechanical fixation; Adjustable positioning compared to laser collimators

    Laser diode collimation, fiber coupling, beam focusing

    Infrared Laser Collimation Lens

    Mid-Far IR Optimized

    Large NA design for 3-5μm wavelength range; Efficient light collection for quantum cascade lasers

    Infrared laser systems

    Fiber Collimator

    Interchangeable Connectors

    Quick-connect threading; Compatible with FCPC/FCAPC/SMA interfaces

    Optical platform integration

    TPX Lens

    Terahertz Optics

    Large aperture (25/38mm) with long focal lengths (35‑200mm); Low absorption in THz range (0.3-3THz)

    Terahertz spectroscopy/imaging
